Die Sinker EDM

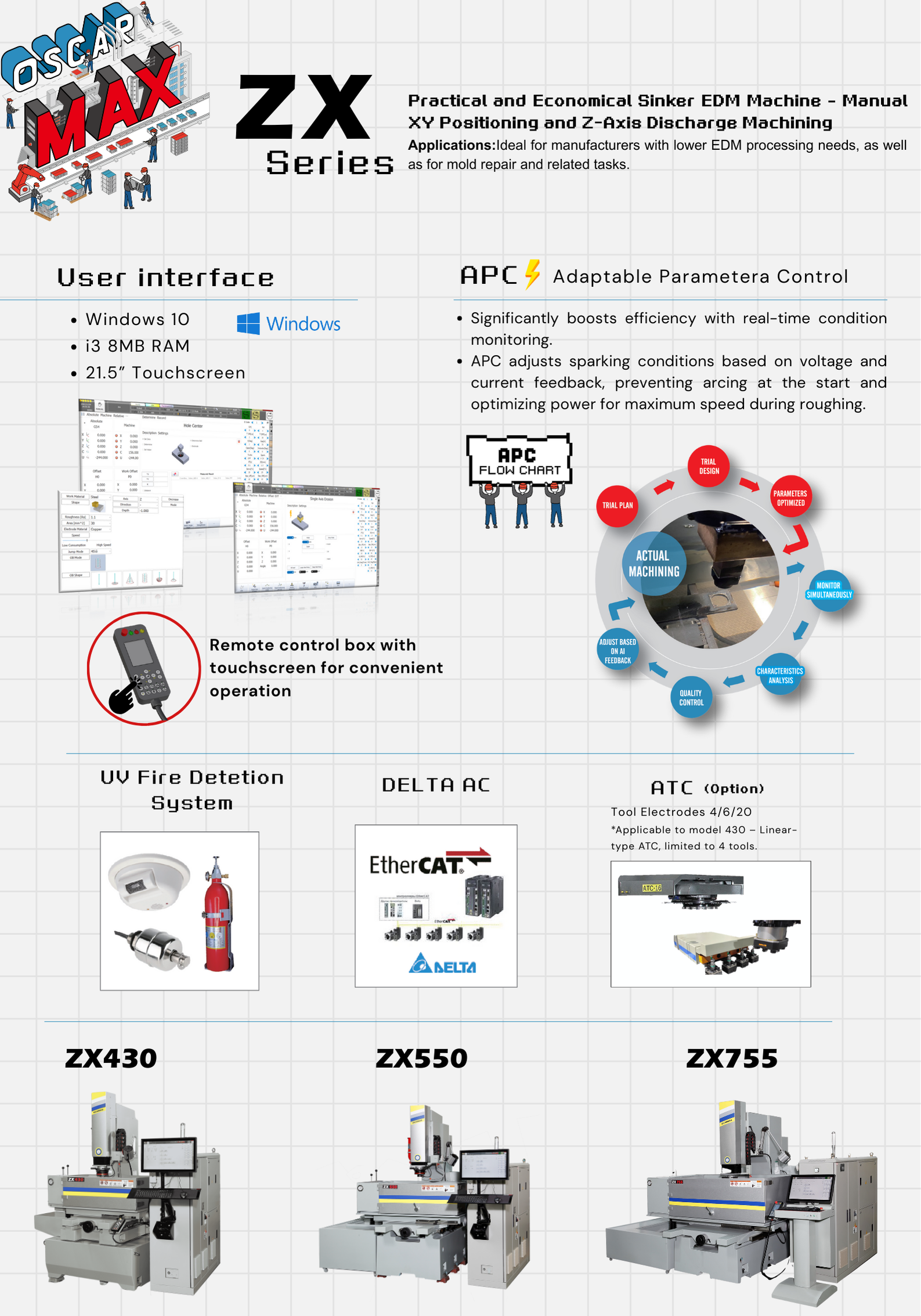

Die Sinker Electrical Discharge Machine -ZX 755

Practical and Economical Sinker EDM Machine - Manual
XY Positioning and Z-Axis Discharge Machining
Applications: Ideal for manufacturers with Lower EDM processing needs, as welL as for moud repair and related tasks.

Highlight
Specifications
Function

Specification

	Unit	Specification
Table Travel (X)	mm	700
Table Travel (Y)	mm	550
Servo Travel (Z)	mm	250
Second spindle travel (Z2)	mm	300
Max. Workpiece Dimensions (WxD)	mm	1630 x 950
Max. Filling Height of Dielectric Tank	mm	385
Distance Between Chuck to Table	mm	190 - 740
Max. Workpiece Weight	kg	2000
Max. Electrode Weight	kg	250
Table Size (WxD)	mm	1100 x 600
Machine Weight	kg	3100

	Unit	Specification
Table Travel (X)	inch	28
Table Travel (Y)	inch	22
Servo Travel (Z)	inch	10
Second spindle travel (Z2)	inch	12
Max. Workpiece Dimensions (WxD)	inch	40 x 28
Max. Filling Height of Dielectric Tank	inch	14
Distance Between Chuck to Table	inch	5 - 19
Max. Workpiece Weight	kg	2000
Max. Electrode Weight	kg	250
Table Size (WxD)	inch	34 x 18
Machine Weight	kg	3100

Generator

Generator	Unit	Specification
Max. Working Current	A	90
Overall Power Consumption	KVA	10
Weight	kgs	350

Dielectric

Filter	Unit	Specification
Tank Capacity	L	1120
Filter Density	μm	20
Filter Elements	pcs	4

ZX SERIES
• Economical design with manual control for X and Y axes and AC servo motor control for the Z axis.
• Equipped with a handheld control box screen for quicker mold centering and electrode edge detection.
• Since the X and Y axes use manual handwheels, OB orbit functionality is not supported.
