Die Sinker EDM

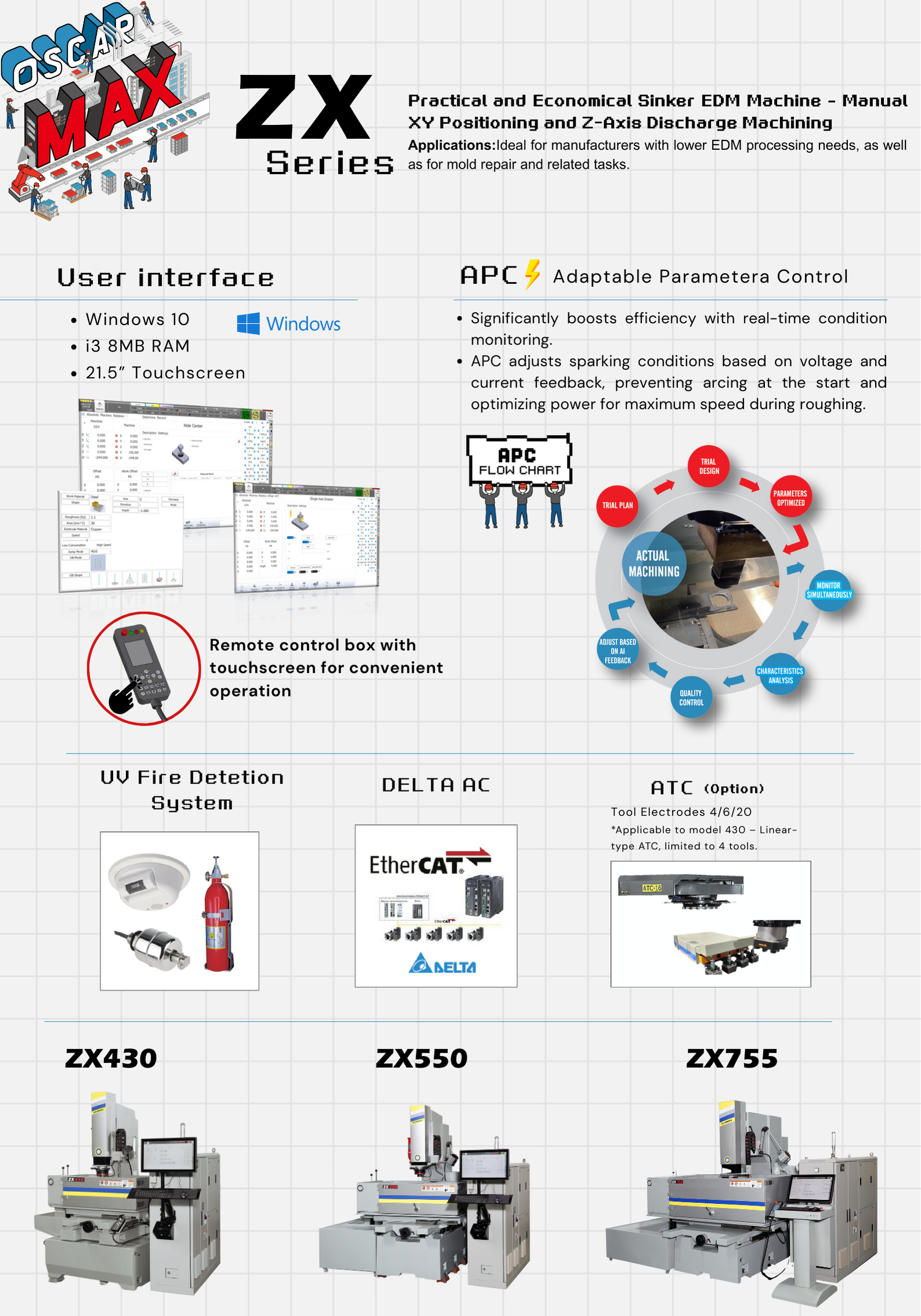

Die Sinker Electrical Discharge Machine - ZX 550

Practical and Economical Sinker EDM Machine - Manual
XY Positioning and Z-Axis Discharge Machining
Applications: Ideal for manufacturers with Lower EDM processing needs, as welL as for moud repair and related tasks.

Highlight
Specifications
Function

Specification

	單位	規格
Table Travel (X)	mm	500
Table Travel (Y)	mm	400
Servo Travel (Z)	mm	350
Max. Workpiece Dimensions (WxD)	mm	1100 x 630
Max. Filling Height of Dielectric Tank	mm	260
Distance Between Chuck to Table	mm	135 - 485
Max. Workpiece Weight	kg	1350
Max. Electrode Weight	kg	220
Table Size (WxD)	mm	800 x 450
Machine Weight	kg	1950

	Unit	Specification
Table Travel (X)	inch	20
Table Travel (Y)	inch	16
Servo Travel (Z)	inch	14
Max. Workpiece Dimensions (WxD)	inch	44 x 25
Max. Filling Height of Dielectric Tank	inch	10.4
Distance Between Chuck to Table	inch	5 - 19
Max. Workpiece Weight	kg	1350
Max. Electrode Weight	kg	220
Table Size (WxD)	inch	32 x 18
Machine Weight	kg	1950

Generator

Generator	Unit	Specification
Max. Working Current	A	60
Overall Power Consumption	KVA	6
Weight	kg	320

Dielectric

Filter	Unit	Specification
Tank Capacity	L	520
Filter Density	μm	20
Filter Elements	pc	3

ZX SERIES
• Economical design with manual control for X and Y axes and AC servo motor control for the Z axis.
• Equipped with a handheld control box screen for quicker mold centering and electrode edge detection.
• Since the X and Y axes use manual handwheels, OB orbit functionality is not supported.
