Die Sinker EDM

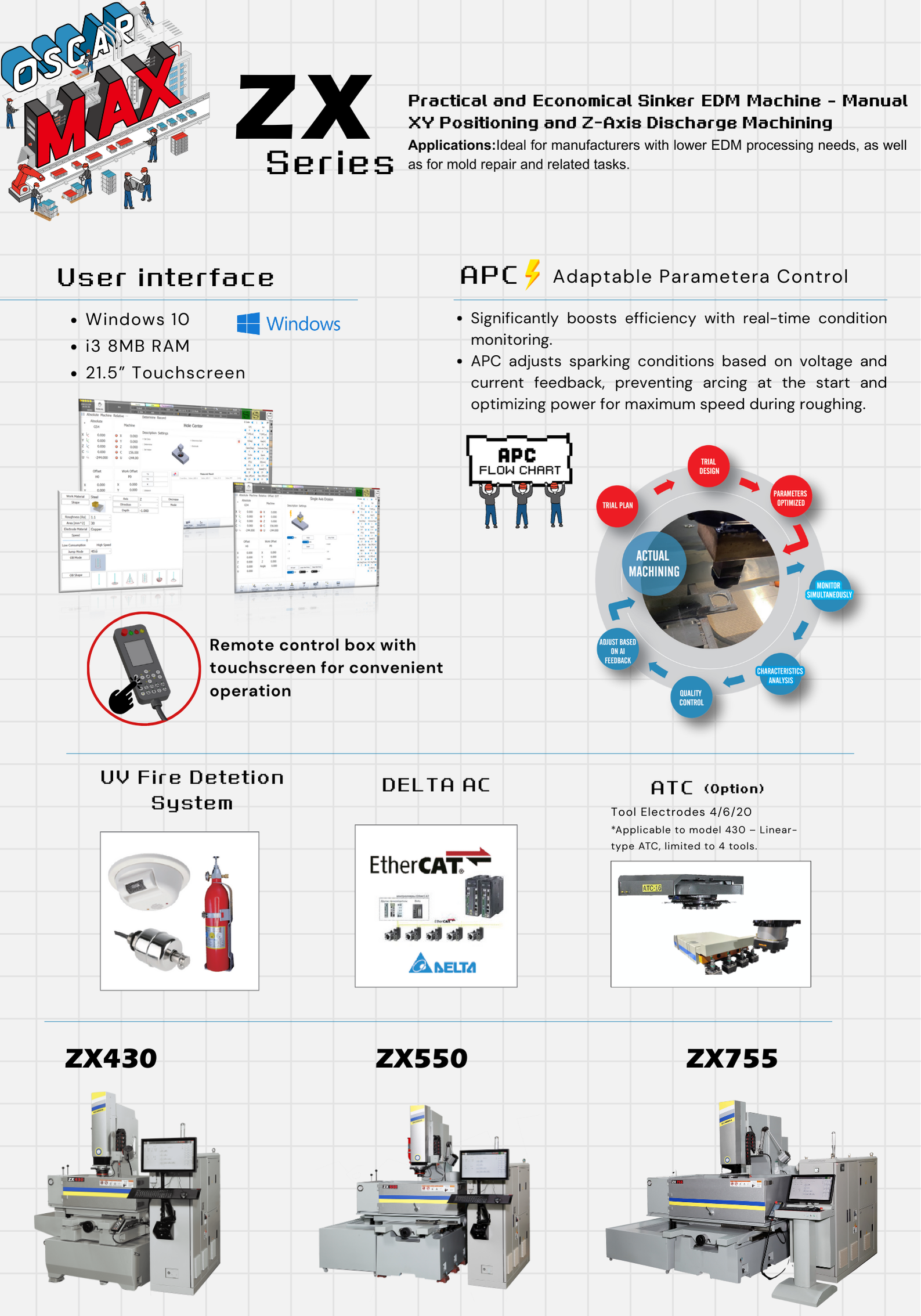

Die Sinker Electrical Discharge Machine - ZX 430

Practical and Economical Sinker EDM Machine - Manual
XY Positioning and Z-Axis Discharge Machining
Applications: Ideal for manufacturers with Lower EDM processing needs, as welL as for moud repair and related tasks.

Highlight
Specifications
Function

Specification

	Unit	Specification
Table Travel (X)	mm	400
Table Travel (Y)	mm	300
Table Travel (Z)	mm	300
Max. Workpiece Dimensions (WxD)	mm	920 x 505
Max. Filling Height of Dielectric Tank	mm	215
Distance Between Chuck to Table	mm	150 - 450
Max. Workpiece Weight	kg	550
Max. Electrode Weight	kg	120
Table Size (WxD)	mm	650 x 350
Machine Weight	kg	1200

	Unit	Specification
Table Travel (X)	inch	16
Table Travel (Y)	inch	12
Table Travel (Z)	inch	12
Max. Workpiece Dimensions (WxD)	inch	36 x 20
Max. Filling Height of Dielectric Tank	inch	8.6
Distance Between Chuck to Table	inch	6 - 18
Max. Workpiece Weight	lb	1212
Max. Electrode Weight	lb	264
Table Size (WxD)	inch	26 x 44
Machine Weight	lb	2645

Generator

	Unit	Specification
Max. Working Current	A	60
Overall Power Consumption	KVA	6
Weight	kg	320

Dielectric

	Unit	Specification
Tank Capacity	L	380
Filter Density	μm	20
Filter Elements	pc	3

ZX SERIES
• Economical design with manual control for X and Y axes and AC servo motor control for the Z axis.
• Equipped with a handheld control box screen for quicker mold centering and electrode edge detection.
• Since the X and Y axes use manual handwheels, OB orbit functionality is not supported.
