Die Sinker EDM

Die Sinker Electrical Discharge Machine -EX S3010-2H -[copy]-[copy]-[copy]

Die Sinker Electrical Discharge Machine -EX S3010-2H -[copy]-[copy]-[copy]
Die Sinker Electrical Discharge Machine -EX S3010-2H -[copy]-[copy]-[copy]
Die Sinker Electrical Discharge Machine -EX S3010-2H -[copy]-[copy]-[copy]

Specification

  Unit Specification
Table Travel (X) mm 1275/2550
Table Travel (Y) mm 1000
Table Travel (Z) mm 600
Max. Workpiece Dimensions (WxD) mm 3830x1590
Max. Filling Height of Dielectric Tank mm 585
Distance Between Chuck to Table mm 560-1160
Max. Workpiece Weight kg 19000
Max. Electrode Weight kg 500
Table Size (WxD) mm 3100x1100
Machine Weight kg 21000



Generator



  Unit Specification
Max. Working Current A 120
Overall Power Consumption KVA 12
Weight kg 380



Dielectric



  Unit Specification
Tank Capacity L 5400
Filter Density μm 20
Filter Elements pc 12

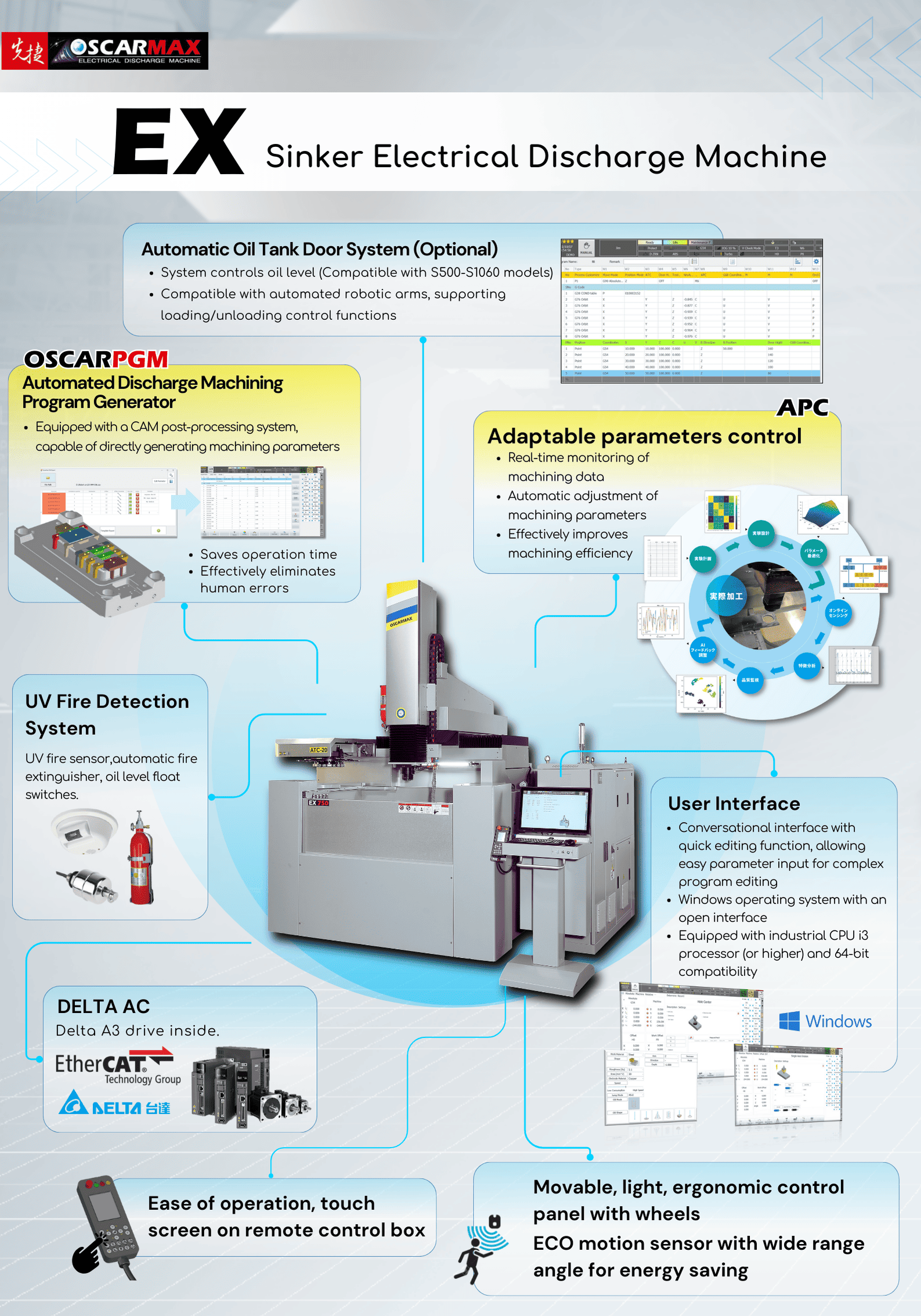

1.Windows 10 Operating system with industrial CPU i3( or above)64-bit.

2.21.5" multi-touch screen with movable controller.

3.Equipped with digital voltmeter, current meter etc., to monitor the machine status easily.

4.Up to 6 axes control - XYZCUV - equipped by rotary table to satisfy complex job.

5.Color touch-screen on remote controller, unique design improves user convenience.

6.ECO stand-by mode: Equipped by a motion sensor for power saving.
