Die Sinker Electrical Discharge Machine - S750 CNC

Die Sinker Electrical Discharge Machine - S750 CNC

Specification

UnitSpecification
Table Travel (X)mm700
Table Travel (Y)mm500
Servo Travel (Z)mm500
Max. Workpiece Dimensions (WxD)mm1370x850
Max. Filling Height of Dielectric Tankmm355
Distance Between Chuck to Tablemm80-580
Max. Workpiece Weightkg3000
Max. Electrode Weightkg250
Table Size (WxD)mm1000x600
Machine Weightkg4500

Generator

GeneratorUnitSpecification
Max. Working CurrentA90
Overall Power ConsumptionKVA10
Weightkg350

Dielectric

FilterUnitSpecification
Tank CapacityL1090
Filter Densityμm20
Filter Elementspc6

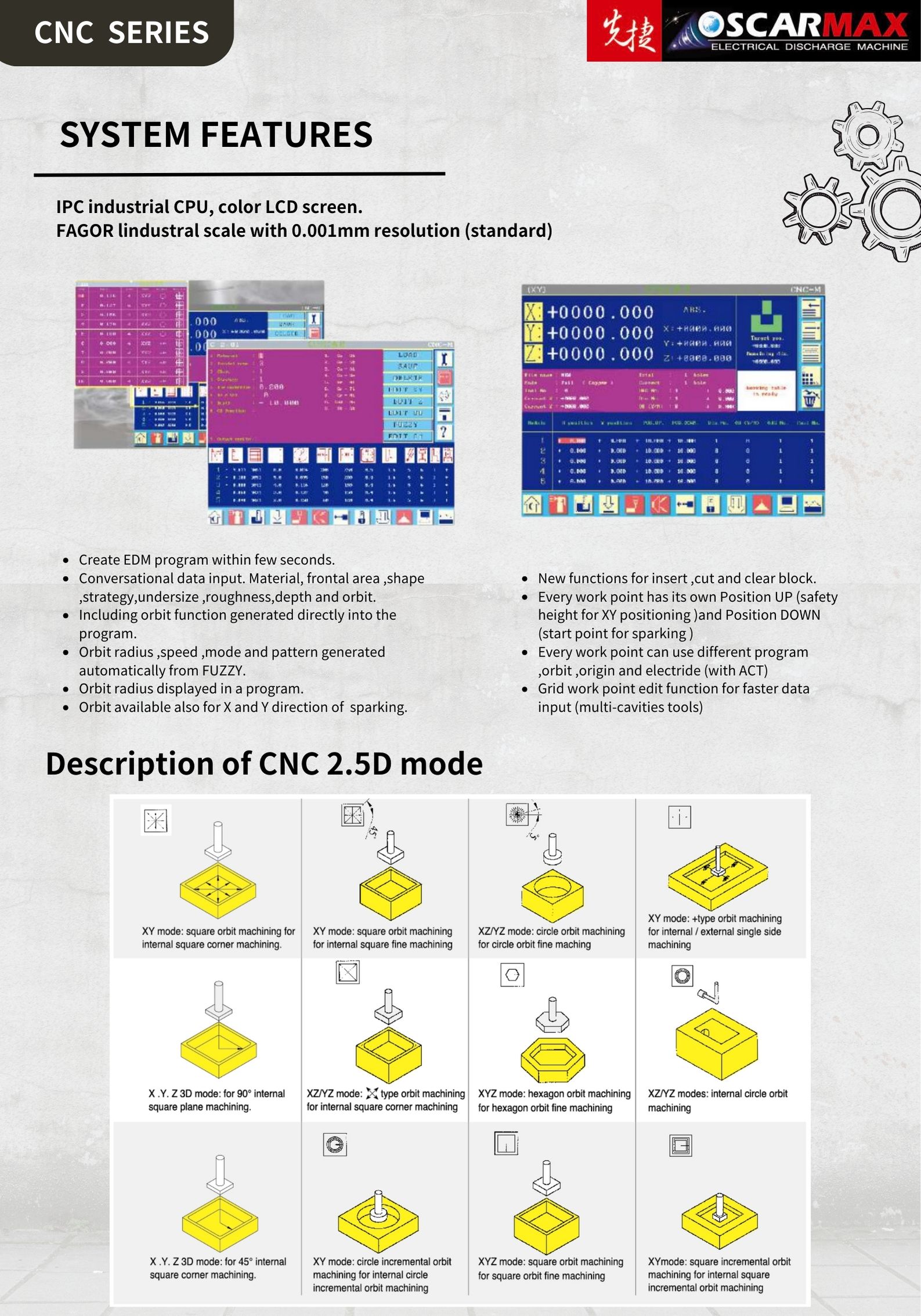

  1. Machining in 2.5D mode allows to spark and orbit along XY,XZ,YZplane.

  2. IPC industrial CPU, color LCD screen.

  3. FAGOR linear scale with 0.001mm resolution (standard).

  4. C5 ball screw with pre-loaded double nut, P class linear guides with extra-long blocks,self-designed strong heat-treated FC25 casting.In combination with proper maintenance advised by OSCARMAX ensure high accuracy and reliability for decades.

  5. V8 Copper and graphite special circuit to increase efficiency and minimize electrode wear-out.

  6. TURBO(standard) & EZ SPARK (option)-OSCARMAX self-developed high-speed circuits help to increase efficiency and MRR of standard(TURBO) and super hard (EZ-SPARK) materials.especially for deep ribs and roughing operations.

  7. Technologies for sparking steel (SKD11, P20, NAK80, STAVAX, stainless steel), aluminum, tungsten-carbide, titanium, copper, copper alloys and nickel alloys materials using graphite, copper, and tungsten-copper electrodes.

  8. Automatic cycles for edge find and center find for easy workpiece set up. Automatic positioning (100 work-points)

  9. DC servo drive with manual fine tuning to maintain process stability and surface integrity.

  10. Remote control box with MPG for easy operation.

  11. FUZZY automatic programming.
