Die Sinker EDM

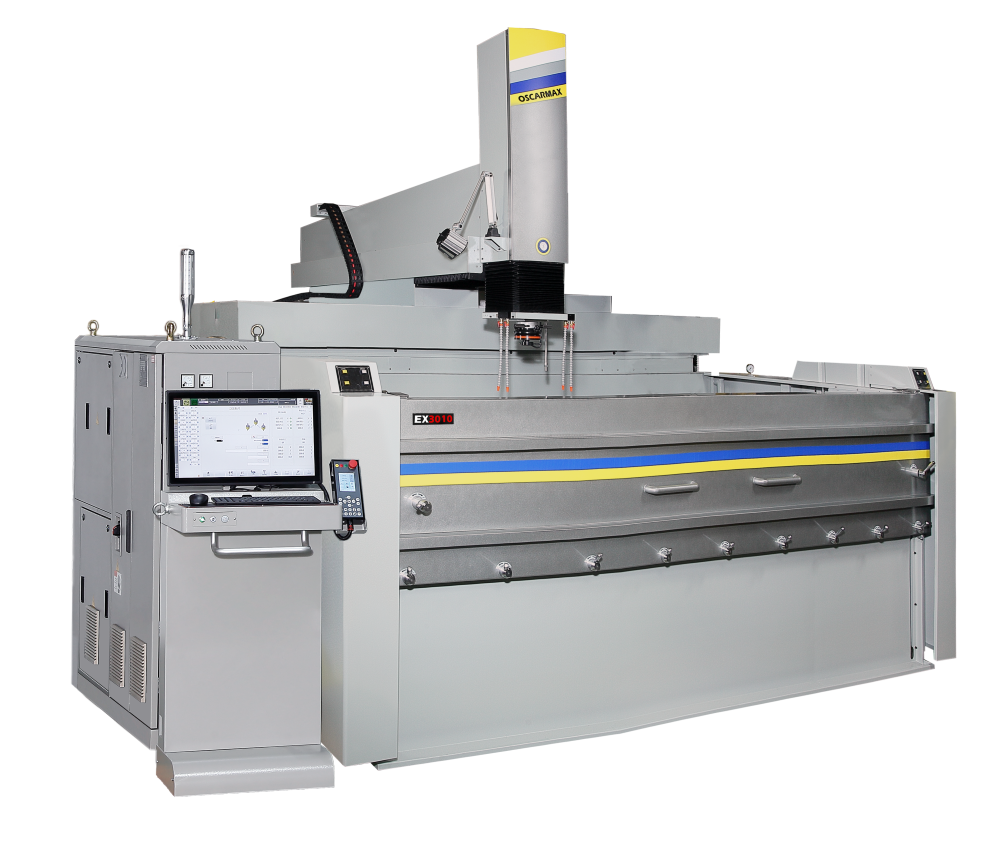

Die Sinker Electrical Discharge Machine - EX 3010

Highlight
Specifications
Function

Specification

	Unit	Specification
Table Travel (X)	mm	3000
Table Travel (Y)	mm	1000
Table Travel (Z)	mm	600
Max. Workpiece Dimensions (WxD)	mm	3915x1580
Max. Filling Height of Dielectric Tank	mm	605
Distance Between Chuck to Table	mm	560-1160
Max. Workpiece Weight	kg	16000
Max. Electrode Weight	kg	500
Table Size (WxD)	mm	3100x1100
Machine Weight	kg	19500

	Unit	Specification
Table Travel (X)	inch	118
Table Travel (Y)	inch	39
Table Travel (Z)	inch	24
Max. Workpiece Dimensions (WxD)	inch	154x62
Max. Filling Height of Dielectric Tank	inch	23.8
Distance Between Chuck to Table	inch	22-45
Max. Workpiece Weight	kg	16000
Max. Electrode Weight	kg	500
Table Size (WxD)	inch	122x43
Machine Weight	kg	19500

Generator

	Unit	Specification
Max. Working Current	A	120
Overall Power Consumption	KVA	12
Weight	kg	380

Dielectric

	Unit	Specification
Tank Capacity	L	5580
Filter Density	μm	20
Filter Elements	pc	8

1.Windows 10 Operating system with industrial CPU i3( or above)64-bit.

2.21.5" multi-touch screen with movable controller.

3.Equipped with digital voltmeter, current meter etc., to monitor the machine status easily.

4.Up to 6 axes control - XYZCUV - equipped by rotary table to satisfy complex job.

5.Color touch-screen on remote controller, unique design improves user convenience.

6.ECO stand-by mode: Equipped by a motion sensor for power saving.
